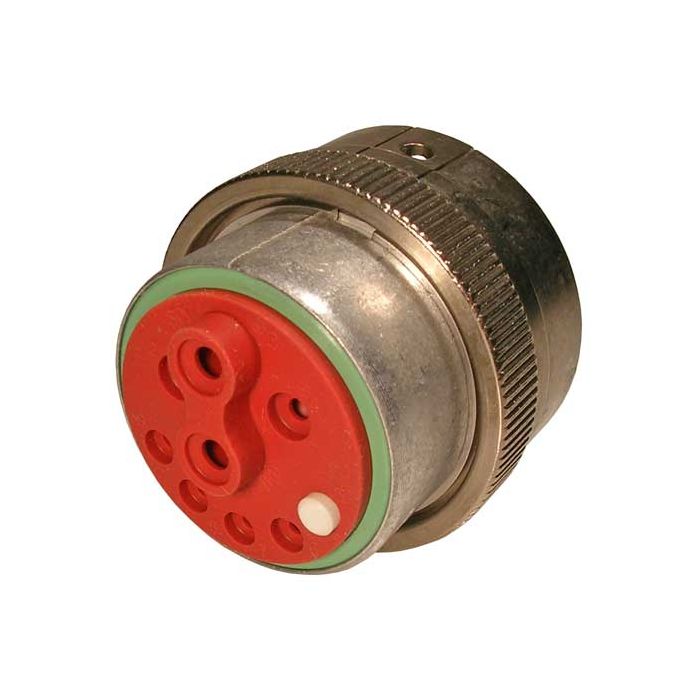

Deutsch HDB36-24-91SN HD30 Series 9 Socket Plug
Special Price
$127.20
Regular Price
$132.50
In stock
SKU
HDB36-24-91SN
Deutsch HDB36-24-91SN HD30 Series 9 Socket Plug is available to buy in increments of 1
Deutsch HDB36-24-91SN HD30 Series 9 Socket Plug
Deutsch HDB36-24-91SN HD30 Series 9 Socket Plug
Features & Details
- Series: HD30 Series
- Cavities: 9
- Contact Size: 8, 16, 12
- Current Rating: 60, 25, 13
Technical Details
| Part Number: | HDB36-24-91SN |
|---|---|
| Series: | HD30 Series |
| Insulation: | (#8).190-.240, (#12).134-.170, (#16).100-.134 insulation |
| Wire Size: | 8, 10, 12, 14, 16, 18, 20 |
| Keyed: | No |
| Color: | Silver |
| Material: | Aluminum |
| Shape: | Circular |
| Connector Style: | Plug |
| Cavities: | 9 |
| Contact Size: | 8, 16, 12 |
| Shell Size: | 24 shell |
| Special Features: | Breakaway, J1939, cavities 4 and 5 internally connected |
| Seal Size: | N seal |
| Current Rating: | 60, 25, 13 |
| Holds Pin/Socket: | Socket |
| Flange/In-line/PCB Mount: | In-line |
| Manufacturer | Deutsch |
|---|---|
| Cavities | 9 |
| Series | HD30 Series |
| Contact Size | 12 (25 Amps), 16 (13 Amps), 8 (60 Amps) |
| Current Rating (Amps) | 60 Amps |
